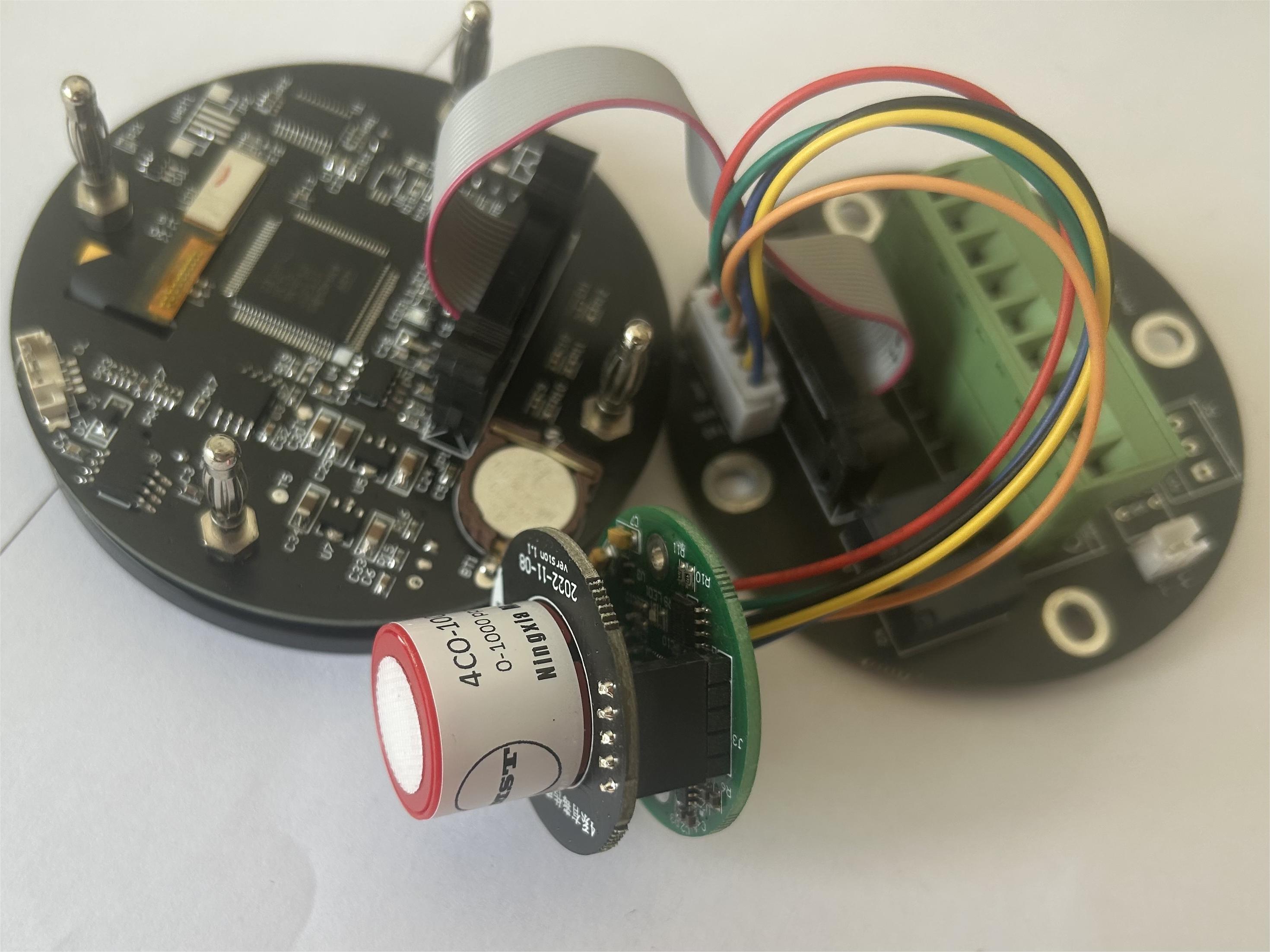

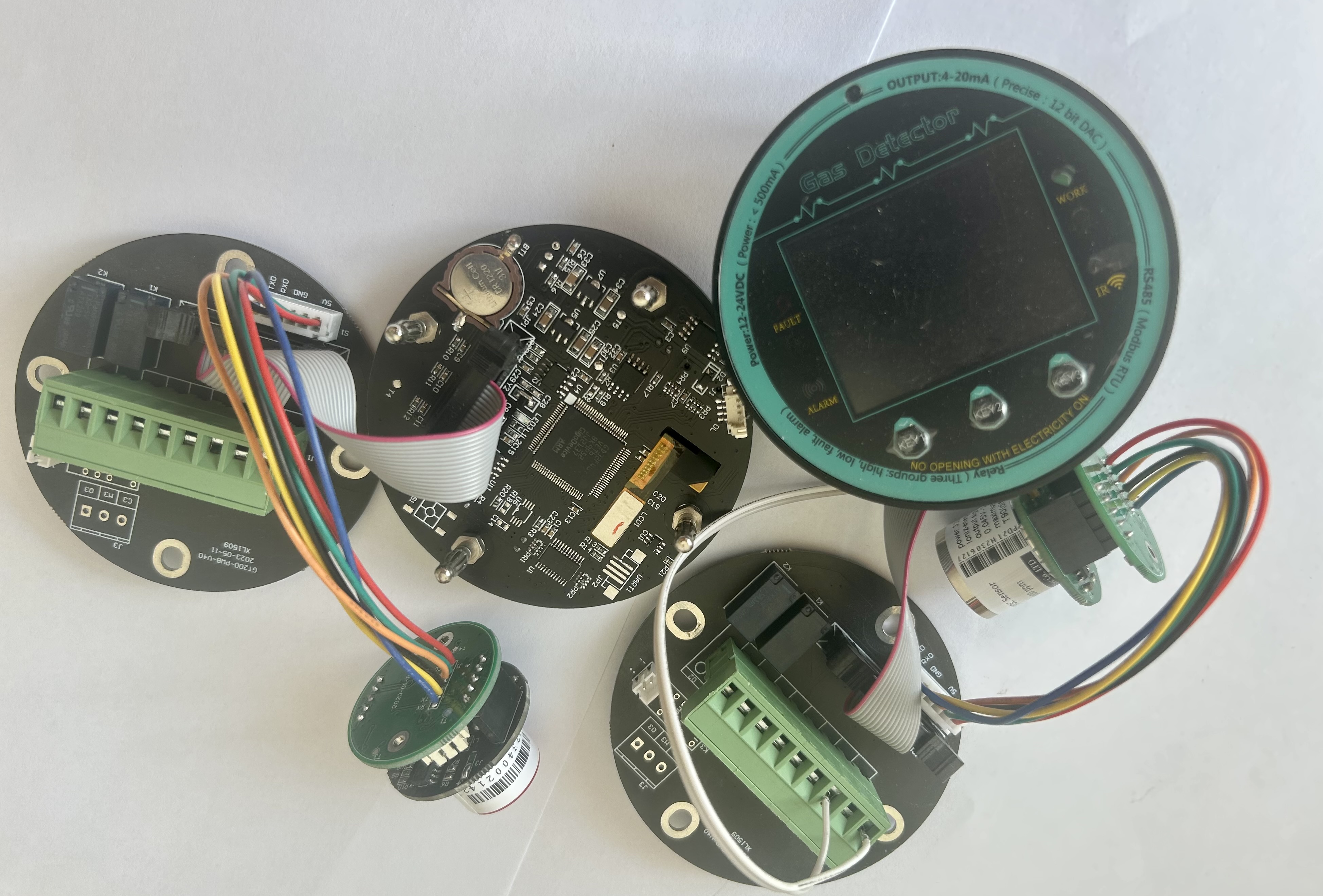

Weight

0.6kg

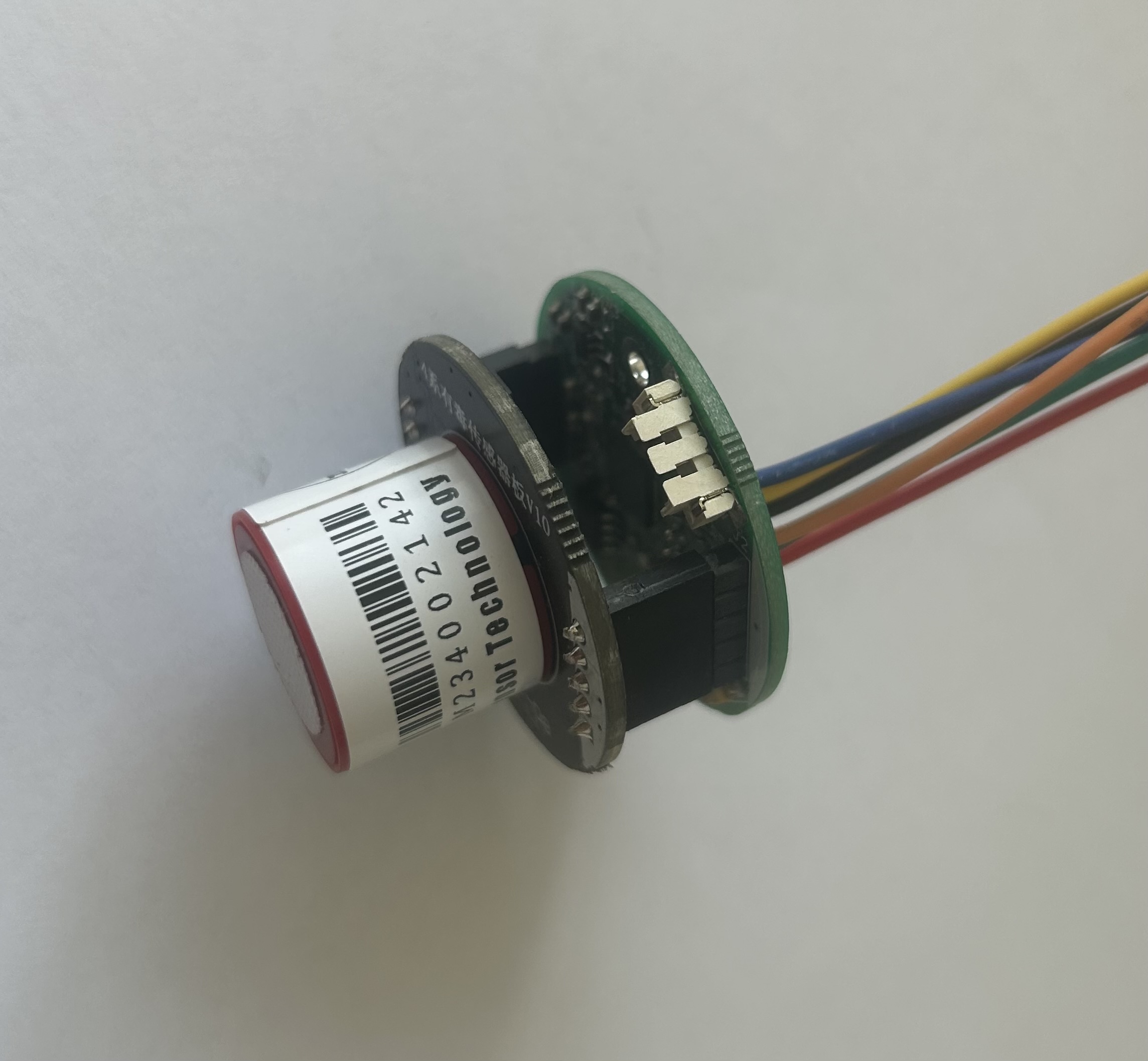

Sensor type Standard

4 series, 7 series electrochemical sensor, infrared sensor, catalytic combustion sensor, PID sensor

Power supply

two-point calibration

oxygen(O2)

12-24VDC

Output

4-20mA, RS485, relay

Sampling mode

diffusion

Display

2.0 inch HD LCD color screen

User Guide

LCD panel buttons, infrared remote control

Operating temperature

-20°C ~ 55°C

Humidity

0-95% Relative humidity (non-condensing)

Number of relays

Up to 3 relays, Max. 30V,2A

Terminal number

Definition

Terminal number

Definition

J1-24V

Input power +

J3-C3

The fault relay is normally closed

J1-GND

Input power -

J3-M3

Fault relay common end

J1-4-20mA

Output current +

J3-O3

The fault relay is normally on

J1-RS485A

Output RS485A

J4(++)

Sound and light alarm +

J1-RS485B

Output RS485B

J4(--)

Sound and light alarm -

J1-M1

Low alarm relay common end

J1-O1

The low alarm relay is normally on

J1-M2

High alarm relay common end

J1-O2

The high alarm relay is normally on
