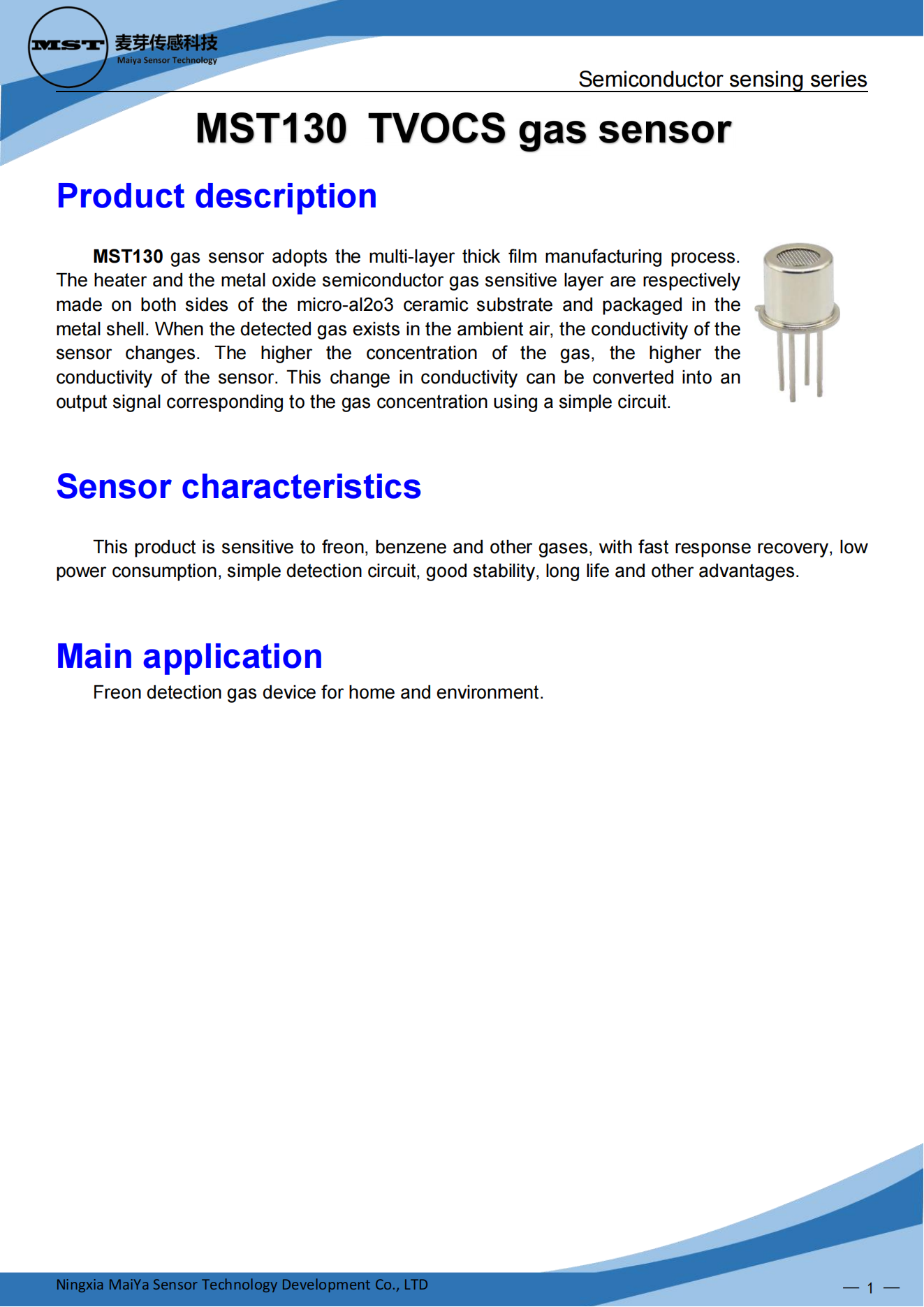

MST130 TVOC gas sensor Semiconductor sensing series
MST130 gas sensor adopts the multi-layer thick film manufacturing process. The heater and the metal oxide semiconductor gas sensitive layer are respectively
made on both sides of the micro-al2o3 ceramic substrate and packaged in the
metal shell. When the detected gas exists in the ambient air, the conductivity of the
sensor changes. The higher the concentration of the gas, the higher the
conductivity of the sensor. This change in conductivity can be converted into an
output signal corresponding to the gas concentration using a simple circuit.
