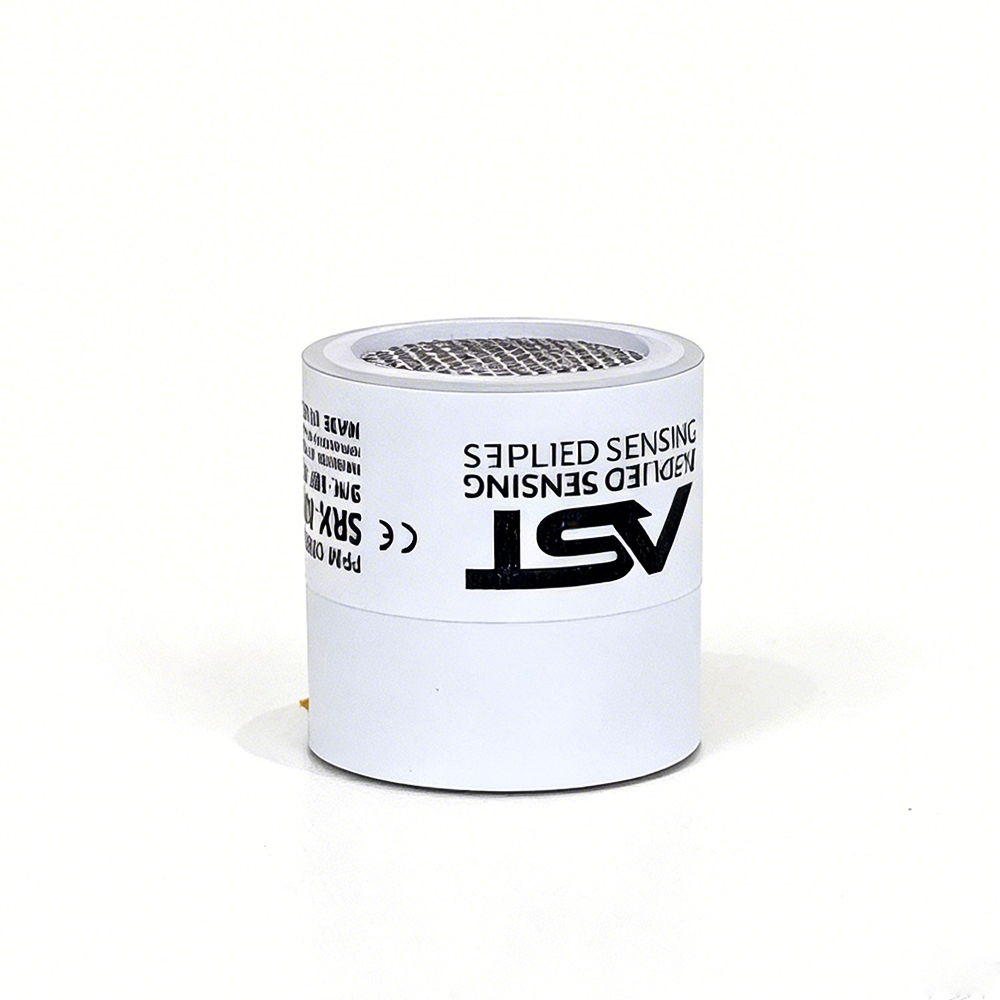

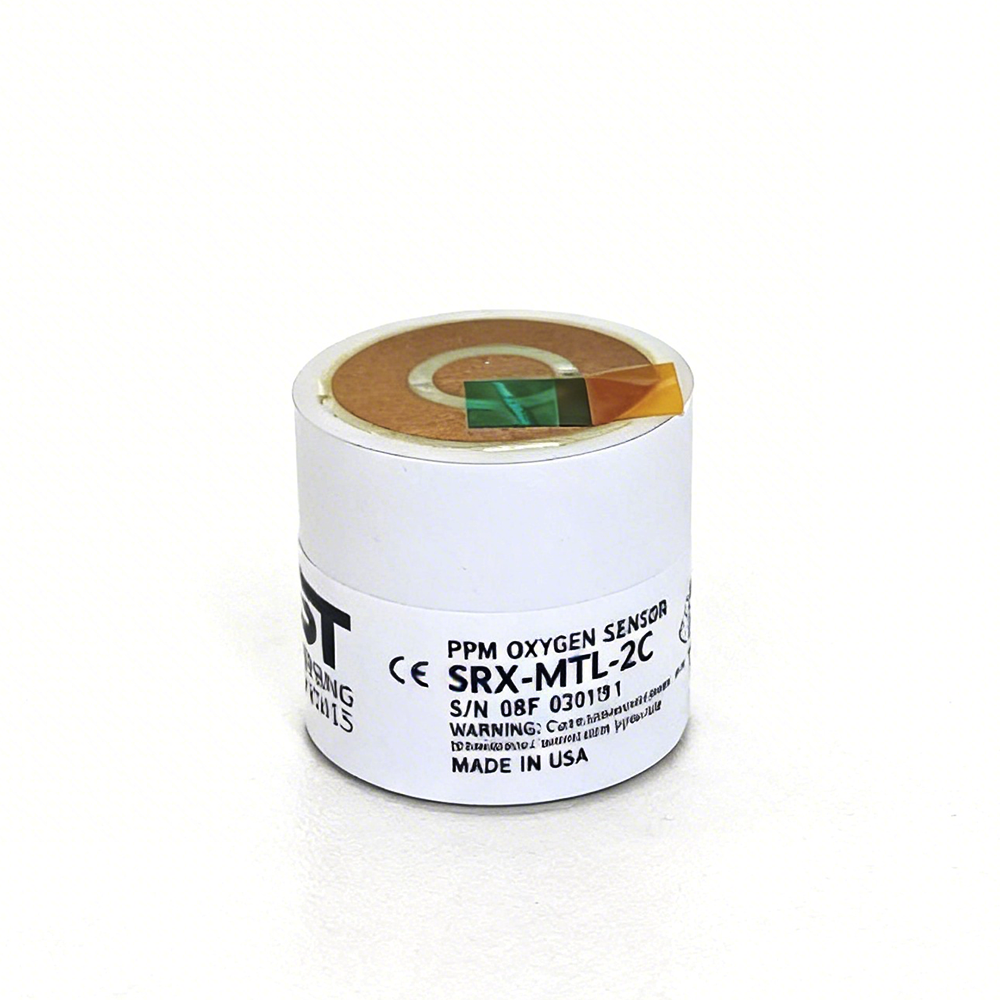

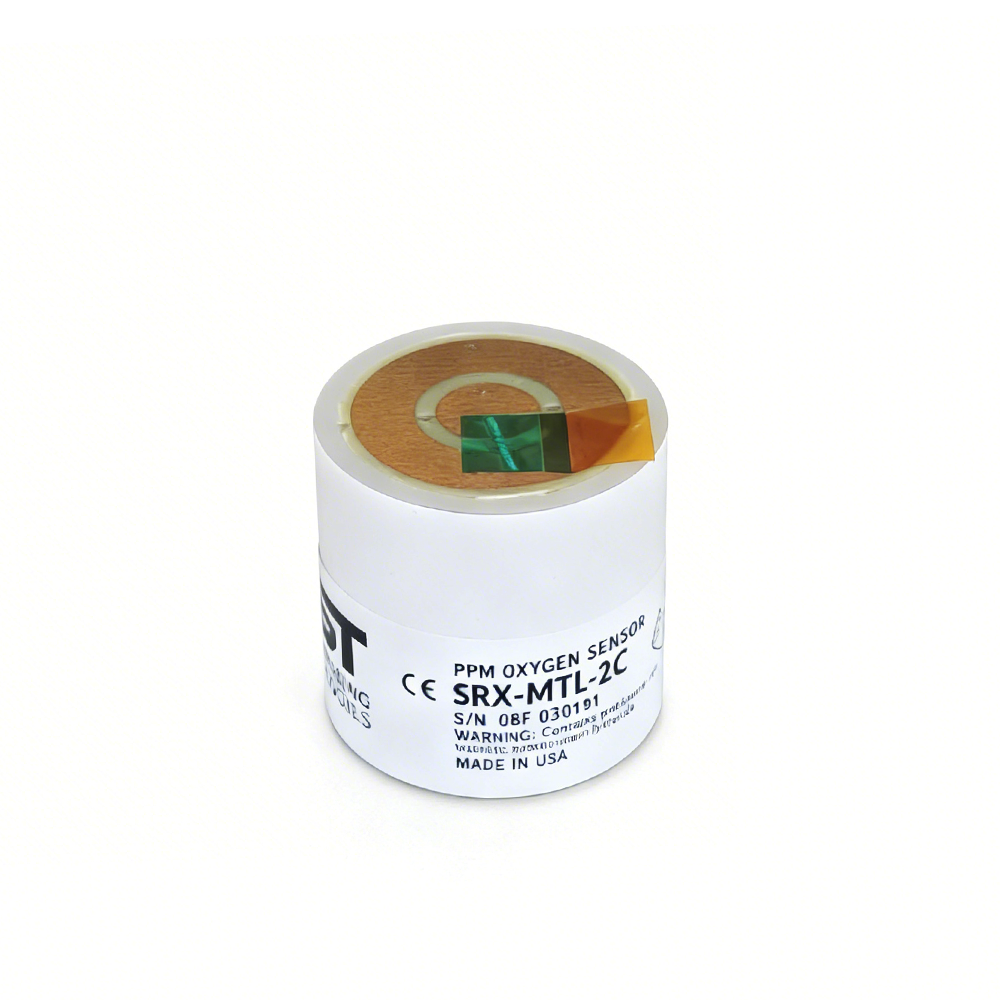

AST SRX-MTL-2C

AST SRX-MTL-2C

AST ModelSRX-MTL-2C Trace PPM O2 sensor is a drop-in replacement to Teledyne Model C6689-L-2C oxygen sensor. This sensor has a larger
electrolyte reservoir and hence offer a much longer sensor life compared to the standard PPM O2 sensor. This sensor is ideal for very dry gas
streams and gas streams at temperature above 30 degree Celsius. Sensor is designed, developed and manufactured in the USA.
Inquiry
  • Overview
  • Videos
  • Resources
  • Related Products
Product Description

Specifications*



Sensor Technology

Galvanic Type Micro Fuel Cell

Optimum Measuring Range

0 to 10 PPM

Signal Output¹

460 - 625 uA

Response Time T90

7 seconds

Accuracy²

+/- 1% of signal

Drift2

< 2%

Linearity

+/- 1%

Repeatability

+/- 0.5%

Temperature Coefficient

-2.2% / °C

Operating Temperature

5 to 45°C

Storage Temperature

0 to 45°C

Recommended Flow Rate

0.5 - 5 SCFH

Humidity Non-Condensing

0 - 99% RH

Expected Life³

24 months

Recommended Storage

6 months

Warranty4

12 months

PCB Connections

Size

Center Negative, Outer Positive

1.25x1.25
